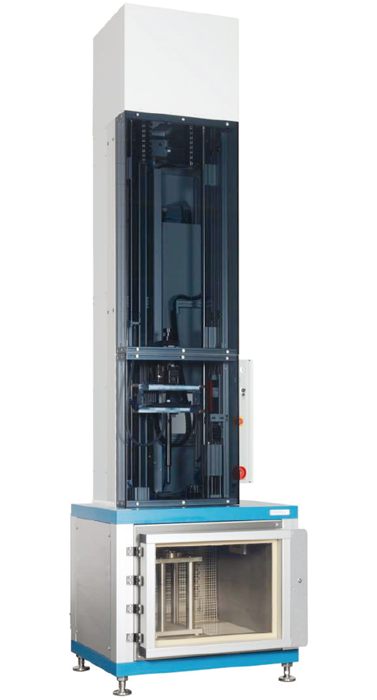

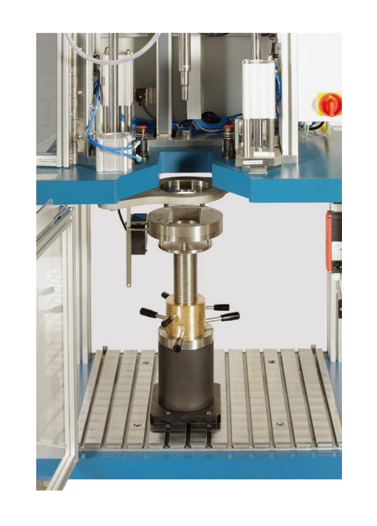

1. main system

• Drop weight : 3.5 to 80 kg
• impact speed : 0.6 to 4.85 m/s (drop height 30~1200 mm)
• drop energy : 1 to 942 J
• dimensions (HxWxL) : approx. 2,700 x 1700 x 1400 mm
• weight : approx. 1,600 kg
• force absorption : max 120 kN
• compressed air supply : 6~10 bar

2. High power active spring~acceleration system

• additional system height : apprx. 500 mm
• speed / simulated height / drop energy
• apprx. 18 m/s / 20.0 m / 392 J at 2 kg
• apprx. 13 m/s / 8.6 m / 844 J at 10 kg
• apprx. 7 m/s / 2.5 m / 1,962 J at 80 kg

3. Data acquisition system

• Trigger signal for force measurement
• Optical speed measuring system
• A/D resolution : 16 bit
• Sampling rate : 4 MHz

4. Temperature chamber

• Inner dimension : 1,000(h) x 1,500(w) x 1,500(d) mm
• max. temp. : +150℃
• Min. temp. : depends on cooling unit
• Include controlled connection for LN2 supply via magnetic valve

5. High Speed Camera for Impact Testing (to measure DIC strain map)

• 1280x800 megapixel CMOS wide screen sensor
• 1280x800 at 16,600pps / 512x512 at 49,100pps (max. 646,000pps)
• sensor : 12 bit image depth
• 2D & 3D DIC strain map analysis
